Tracking Roller Assembly

Standard Features

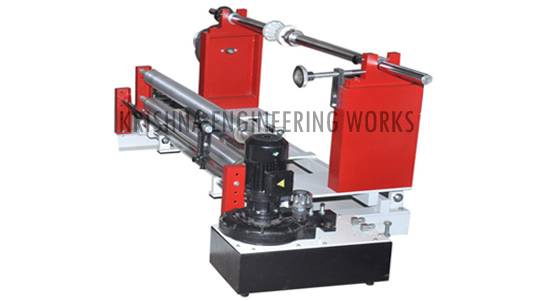

Tracking Roller Assembly

Krishna Engineering Works is a leading manufacturer of Tracking Roller Assembly. We provide an accurate Tracking Assembly system with Web Guiding Unit or Edge Guiding Unit Consisting of two rectangular steel tubing frames. One is stationary, the other is movable. it is supported in a nyalguide sliding block and arcuate bar system and has an idler roller at either end.

The web can be fed over the Tracking Roller Assemblies in A ‘U’ shaped path, reversing its direction of travel, or through the Tracking Roller Assemblies in a ‘Z’ configuration, maintaining the same direction of travel. It is insensitive to attitude and can even be mounted upside down. Solidly supported on all four corners by nylaguide bearings, it is not subject to deflections caused by cantilever stresses. Radial bearings are sealed, and linear bearings are self–cleaning and self–lubrication. The unit, therefore, requires no maintenance.

DESCRIPTION:
Standard adapter bases consist of a stationary floor mounted frame or plate, a four-unit, standard nylaguide bearing and support system, and a moving frame of the plate. A heavy-duty servo cylinder is nested between the frames and the nylaguide bearings. The servo cylinder moves the upper adapter base plate back and forth in response to hydraulic signals from the power unit.

THE PRINCIPLE:
The TRA is designed so that is swings in an arc laterally, pivoting about an imaginary pivot point located exactly in the plane of the entering web path. The servo cylinder swings the other end of the frame, moving the outgoing web laterally back into the desired web path. Because the TRA correction range is increased by lengthening the span. Therefore the correction angle can be kept small to reduce induced stresses to the level desired. Because stresses can be used to guide within the tension loop on your process.

It can be installed successfully on lines handling fragile materials such as parchment paper, thin metal foil, or saturated paper even. When other guiding methods have failed. It can also be used to make extremely large corrections in the web path, even displacing the shifting unwind, because of its very low inserted stress level. Web guiding tension control pneumatic system complete with air shaft, Expandable Shaft holding device & expansion expander with Guide Roller & frame structure

Technical Specification

  • 0.5 H.P. Motor
  • Air Pipe – 5 Mtr.
  • Oil Pipe – 5 Mtr.
  • Sensor – 1 pcs
  • Adjuster – 1 pcs.
  • Air Filter – 1 pcs.
  • Oil Filter – 1 pcs.
  • Hydraulic Cylinder size 6” stock – 1 pcs
