Standard Features

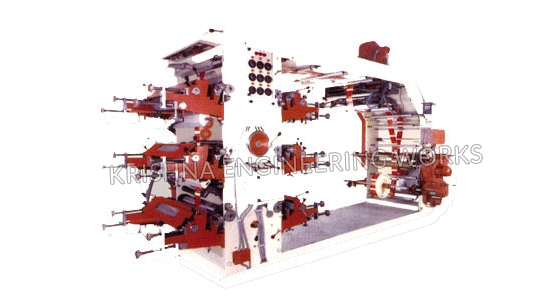

Flexo Printing Machine
Our Flexo Printing Machine available in various sizes like: 18″, 20″, 22″, 24″, 26″, 28″, and 30″ in Four & Six Colors from Ahmedabad, Gujarat, India.
We have always readily available Printing Rollers with Gears for all sizes of Flexo Printing Machine
Rubber roll and doctor blade pneumatically or manually.
Tension controller
Flexo Printing Machine designed with Motored registration control and many more features, we are also manufacturer of different type of Rotogravure Printing Machine , also high-quality web aligner
Technical Specification
- High Printing speed to meet high – volume orders Precise Printing quality for superior reproductions Simultaneous two job Printing for more productivity, Energy saving for Lower operational costs Easy operational that saves labor.
- Registration Accuracy Strong and rebuts structure for Zero vibrations Quick Loading of Print Cylinders to minimize downtime Auto stop for Web Heater Thermostat for Power saving Helical Gears for Smoother movement Hard Chromed Anilox & Cylinder Rollers for Sharper Images Digital Counter Duplex System with to unwind and rewind stations to run two jobs at the same time Reveres printing – 1+5 or 2+4 or 3+3.
|
Web Width Size |
20″ Web Width |
24″ Web Width |
30″ Web Width |
|
Max Printing Width |
18″ |
22″ |
28″ |
|
Print Repeat Min |
8″ |
8″ |
8″ |
|
Print Length Max. |
36″ |
36″ |
36″ |
|
Printing Speed |
0 – 60 Mts/Min. |
0 – 60 Mts/Min. |
0 – 60 Mts/Min. |
|
Max. Parent Dia. |
30″ |
30″ |
30″ |
|
Main Drive Motor |
3 HP D.C. |
3 HP D.C. |
3 HP D.C. |
|
A.C. Motor Blower |
3 HP D.C. |
3 HP D.C. |
3 HP D.C. |
|
Heating Load |
13.5 kw |
13.5 kw |
13.5 kw |
|
Floor Space Required:
|
|||
|
Length |
5.5 Mts |
5.5 Mts |
5.5 Mts |
|
Width |
1.5 Mts |
1.5 Mts |
1.5 Mts |
|
Height |
3 Mts |
3 Mts |
3 Mts |
|
Weight (Approx.) |
3200 Kgs |
3200 Kgs |
3200 Kgs |
